CBB60运转电容

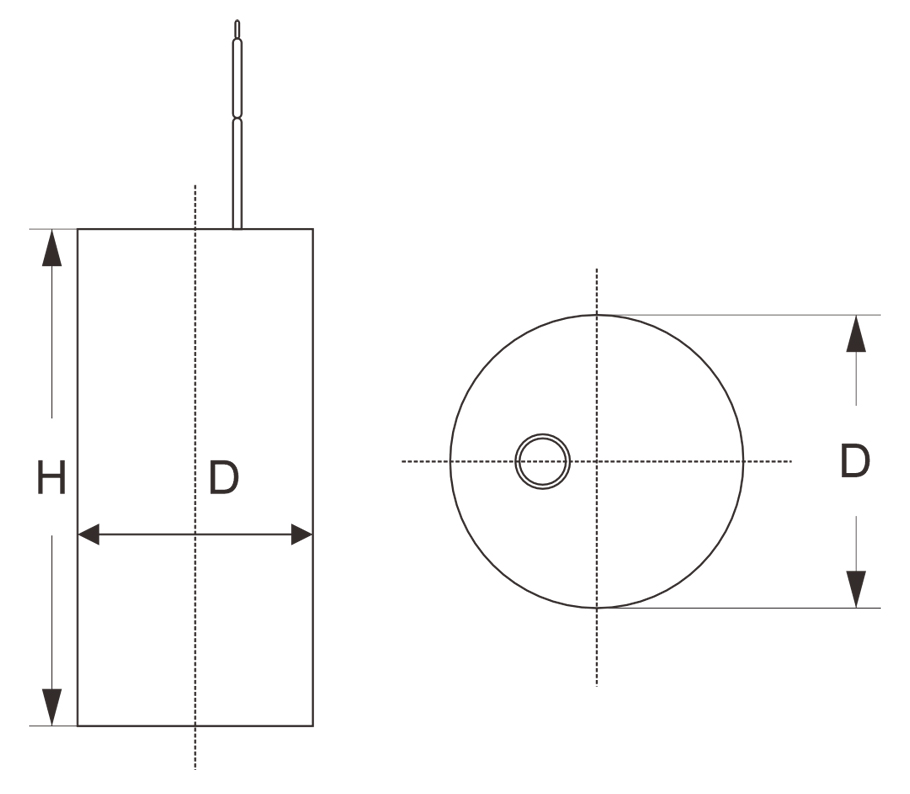

| 特点及用途： | CBB60外形尺寸 | mm | |||||||
| 本产品用聚丙烯薄膜做介质，采用锌铝边缘加厚真空蒸镀技术，全自动卷绕机紧密卷绕，塑料外壳,环氧树脂灌封，具有良好的密封性、损耗小、自愈性能好、绝缘性能好、内部温升小、使用性能稳定、寿命长。 | 容量uF | 250/300VAC | 370/400VAC | 450VAC | |||||
| D±1 | H±2 | D±1 | H±2 | D±1 | H±2 | ||||
| 1 | 25 | 45 | 25 | 45 | 25 | 45 | |||
| 1.5 | 25 | 45 | 25 | 45 | 25 | 45 | |||
| 2 | 25 | 45 | 25 | 45 | 25 | 45 | |||
| 2.5 | 25 | 45 | 25 | 45 | 25 | 45 | |||
| 3 | 25 | 45 | 25 | 45 | 25 | 45 | |||
| 广泛用于频率为50Hz/60Hz交流单相电动机起动和运转，如；单相水泵、洗衣机、清洗机、单相电机、空压机、风扇等等 | 4 | 25 | 45 | 25 | 50 | 25 | 50 | ||
| 5 | 25 | 45 | 25 | 50 | 25 | 60 | |||
| 6 | 25 | 45 | 25 | 60 | 30 | 50 | |||
| 7 | 25 | 50 | 30 | 50 | 30 | 60 | |||
| 8 | 25 | 60 | 30 | 60 | 30 | 60 | |||
| 9 | 25 | 60 | 30 | 60 | 32 | 60 | |||
| 10 | 30 | 50 | 30 | 60 | 35 | 60 | |||
| 技术要求 | 12 | 30 | 60 | 32 | 60 | 35 | 60 | ||
| 12.5 | 30 | 60 | 32 | 60 | 35 | 60 | |||
| 引用标准 | GB/T3667.1-2016 | 15 | 30 | 60 | 35 | 60 | 40 | 70 | |
| 16 | 32 | 60 | 35 | 68 | 40 | 70 | |||
| 气候类别 | 25/70/21、40/85/21 | 18 | 35 | 60 | 35 | 68 | 40 | 70 | |
| 20 | 35 | 60 | 40 | 70 | 40 | 70 | |||
| 安全防护等级 | S0 | 22 | 35 | 60 | 40 | 70 | 40 | 70 | |
| 25 | 35 | 60 | 40 | 70 | 42 | 80 | |||
| 额定电压 | 250/300VAC、320/370VAC、400/450VAC | 30 | 40 | 70 | 42 | 80 | 42 | 90 | |
| 31.5 | 40 | 70 | 42 | 80 | 42 | 90 | |||
| 电容量范围 | 1-120uF | 35 | 40 | 70 | 42 | 90 | 45 | 90 | |
| 40 | 40 | 70 | 42 | 90 | 45 | 90 | |||
| 电容量允许偏差值 | △Ｃ：±5% | 45 | 40 | 80 | 45 | 90 | 50 | 90 | |
| 50 | 40 | 90 | 45 | 90 | 50 | 90 | |||
| 运行等级 | B / C | 55 | 40 | 90 | 50 | 90 | 50 | 100 | |
| 60 | 45 | 90 | 50 | 90 | 50 | 100 | |||
| 试验电压 | 端子间：2UN(2s) | 65 | 45 | 90 | 50 | 100 | 55 | 100 | |
| 70 | 45 | 90 | 50 | 100 | 55 | 100 | |||
| 最高工作电压 | 1.1UN下长期运行 | 80 | 45 | 90 | 55 | 100 | 60 | 120 | |
| 90 | 50 | 90 | 55 | 100 | 60 | 120 | |||
| 最高工作电流 | 1.3In下长期运行 | 100 | 50 | 90 | 60 | 120 | 60 | 120 | |
| 110 | 50 | 100 | 60 | 120 | |||||
| 引出方式 | 电缆式 | 120 | 50 | 100 | 60 | 120 | |||
| 注：特殊尺寸按照客户要求 | |||||||||
